Main PLC communication protocols supported:
On top of what’s supported by low end HMI panels.
BACnet/IP
Siemens S7-1200/S7-1500 FreeTag
Rockwell Micro850 EtherNet/IP
Rockwell CompactLogix EtherNet/IP
OMRON NX/NJ Ethernet/IP
TwinCAT
CODESYS V3
Wecon LX6V FreeTag EtherNet/IP
MODBUS TCP
MODBUS RTU
OPC UA Client
OPC UA Server
MQTT
Screen Size Availability:
4.3″, 7″, 10″, 12″ and 15″.
Programing Platform:
PI Studio (totally free)
Advanced Features:
Embedded browser to visit websites (available only on special models)
Embedded Video Player
IP Camera
USB Printer

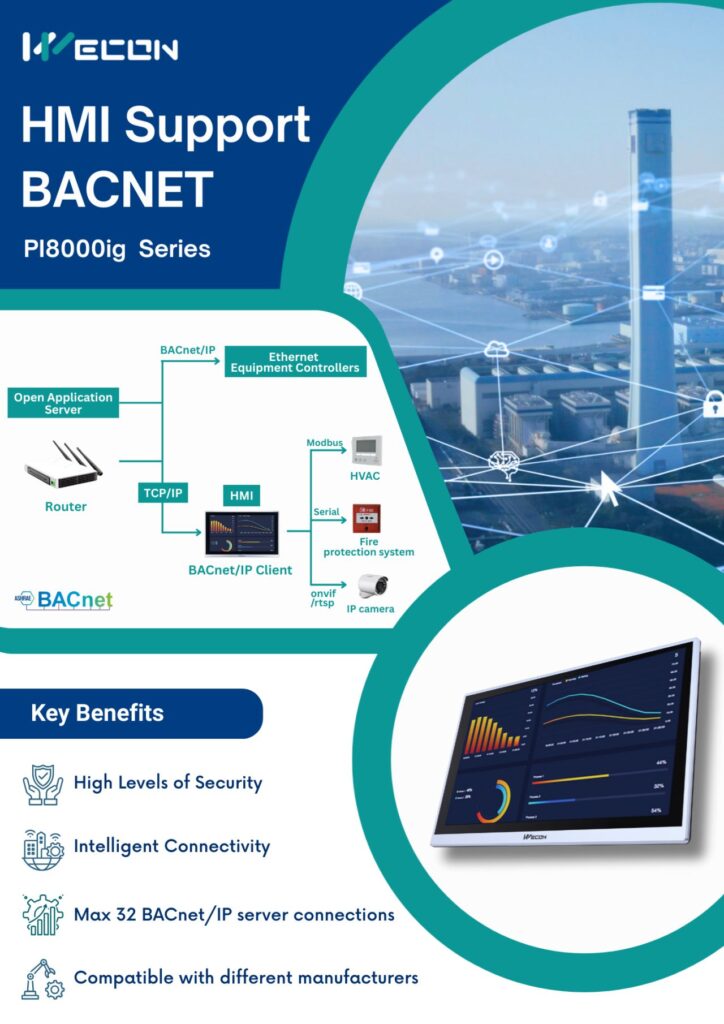

BACnet HMI Panel for Building Automation and Industrial Control
The PI8000ig series HMI supports BACnet/IP communication, making it an ideal operator interface for Building Management Systems (BMS), HVAC control, energy monitoring, and industrial automation applications.
With native support for BACnet/IP, OPC UA, MQTT, Modbus TCP/IP and other industrial communication protocols, the PI8000ig allows operators to monitor, control and visualize data from multiple devices through a single touchscreen interface.
What is a BACnet HMI?
A BACnet HMI (Human Machine Interface) is a touchscreen operator panel that communicates with BACnet-enabled devices and controllers. BACnet is one of the most widely used communication protocols in building automation systems, allowing interoperability between equipment from different manufacturers.
The PI8000ig BACnet HMI can display real-time values, alarms, trends, energy data and equipment status from BACnet/IP networks, providing a user-friendly interface for building operators and maintenance personnel.
Applications
The PI8000ig BACnet HMI is suitable for:
- Building Management Systems (BMS)
- HVAC monitoring and control
- Air handling units (AHU)
- Chillers and cooling towers
- Fan coil units (FCU)
- Energy management systems
- Lighting control systems
- Water treatment facilities
- Industrial automation systems
- Smart buildings and IoT applications
BACnet/IP HMI for HVAC and Building Management Systems
Modern buildings often contain equipment from multiple vendors. BACnet/IP enables these devices to communicate over standard Ethernet networks. The PI8000ig HMI provides a centralized graphical interface that allows operators to:
- View equipment status in real time
- Monitor temperatures, pressures and energy consumption
- Acknowledge alarms and events
- Control HVAC equipment
- Display historical trends
- Access building performance data
The result is improved operational efficiency and easier facility management.

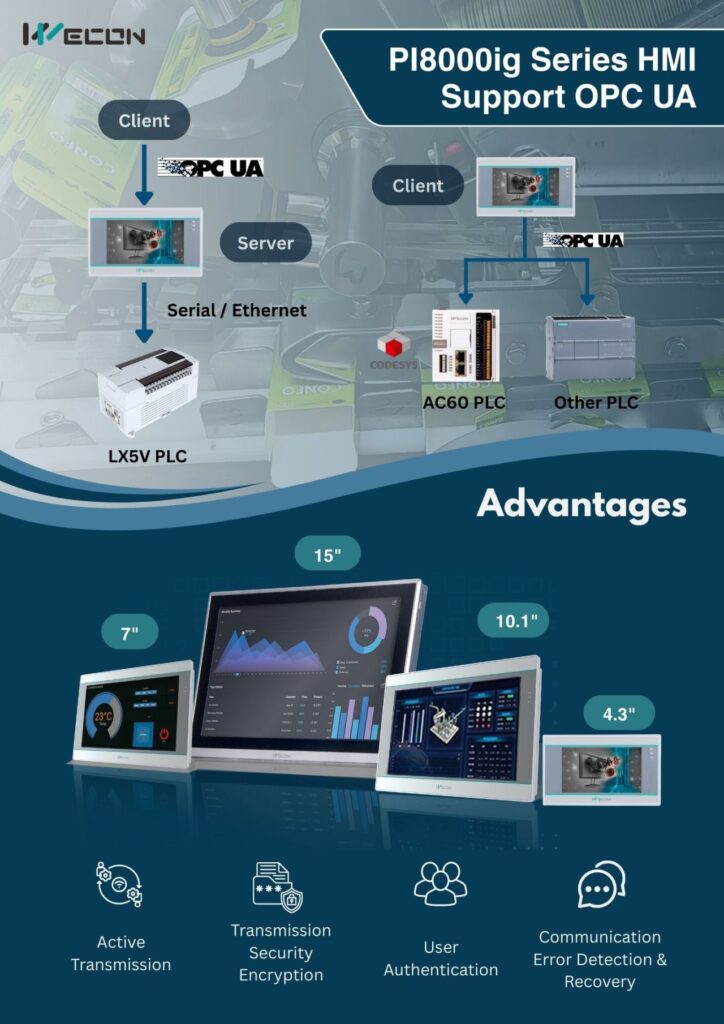

Integration with OPC UA and MQTT
In addition to BACnet/IP, the PI8000ig supports OPC UA and MQTT communication protocols. This allows the HMI to act as a bridge between traditional building automation systems and modern Industry 4.0 platforms.
System integrators can connect BACnet devices while simultaneously exchanging data with SCADA systems, cloud platforms, edge computing devices and IoT applications.

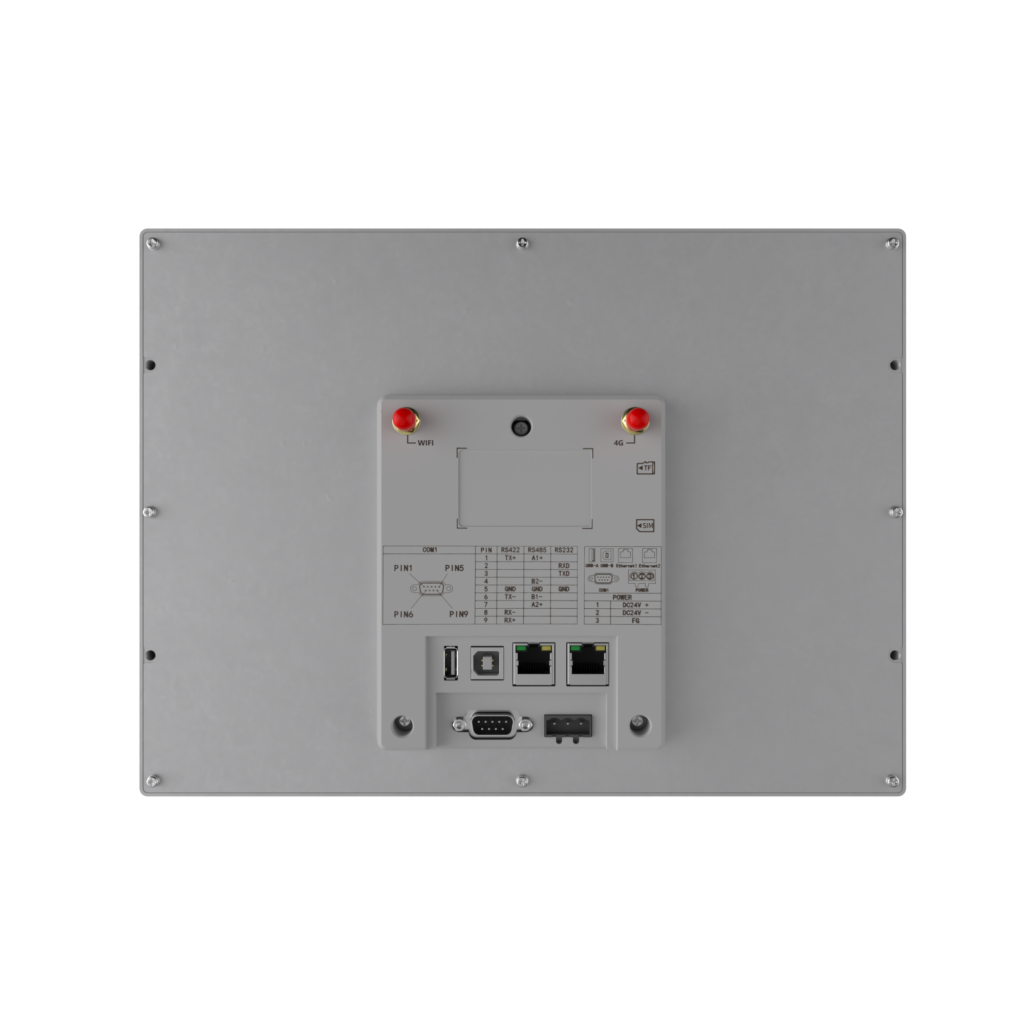

Dual Ethernet Ports for Flexible Network Architecture
The PI8000ig includes dual Ethernet ports that simplify network integration. Separate networks can be connected without additional switches, making the HMI suitable for applications requiring communication between building networks, industrial networks and supervisory systems.
Why Choose the PI8000ig BACnet HMI?
- Native BACnet/IP support
- OPC UA and MQTT communication
- Dual Ethernet ports
- High-resolution touchscreen display
- Industrial-grade design
- Suitable for BMS and HVAC applications
- Easy integration with automation systems
- Remote monitoring capabilities
- Multiple screen sizes available
Whether you are designing a new Building Management System or upgrading an existing HVAC control system, the PI8000ig BACnet HMI provides a powerful and flexible operator interface for modern automation projects.
