Main Features of HMI screens:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script.
- VPN service is embedded for remotely managing and programming HMIs and PLC devices.
- HMIs with Cloud Storage can store data records and alarms into cloud with no extra charge. Data in cloud can be viewed and exported on PC and mobile phones.
- Alarm notifications via Emails.
- MQTT and HTTP service for data logging, using screen as data logger.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- Data records can be saved on USB drive, or SD-Card if supported, then export to PC or Excel for analysis.
- Programming service is available at a fee.

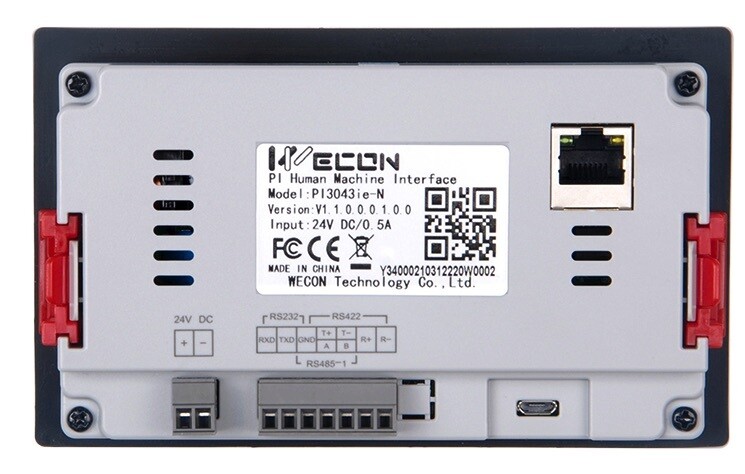

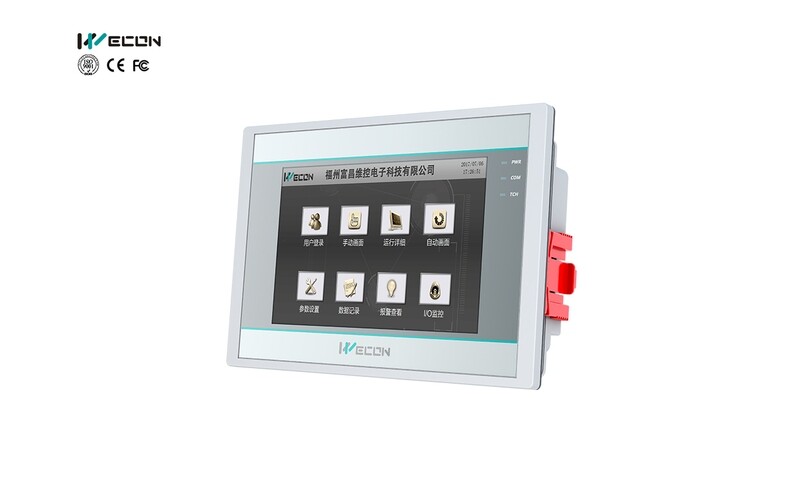

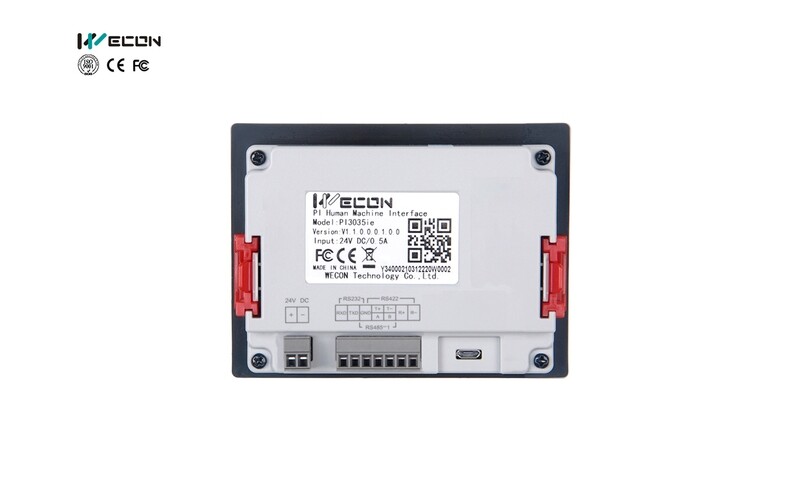

Small HMI Screen 3.5″ & 4.3″ – Compact Industrial Touchscreen for PLC Automation
The Small HMI Screen series delivers powerful machine monitoring and control capabilities in a compact footprint, making it ideal for space-constrained industrial automation applications. Available in 3.5-inch and 4.3-inch touchscreen sizes, these HMIs provide an affordable and reliable operator interface for machinery, process control systems, OEM equipment, and automation projects.
Designed for seamless integration with PLC controllers, the HMI supports MODBUS RTU and MODBUS TCP communication and is compatible with most major PLC brands. Despite its compact size, the platform includes advanced Industrial Internet of Things (IIoT) functionality such as MQTT communication, HTTPS requests, remote data exchange, email alarm notifications, and data management features.
The intuitive touchscreen interface enables operators to monitor machine status, adjust process parameters, view alarms, and control equipment efficiently. Advanced users can leverage LUA scripting and VB-style scripting to create custom logic, automation functions, and enhanced user interfaces.
With free programming software, local Australian stock, and flexible connectivity options including selected Ethernet-enabled models, the Small HMI Screen is an excellent choice for control panels, packaging equipment, pump stations, water treatment systems, manufacturing machinery, and custom automation solutions.
Key Features
- Available in compact 3.5″ and 4.3″ touchscreen sizes
- Industrial HMI for machine monitoring and control
- MODBUS RTU and MODBUS TCP communication support
- Compatible with major PLC brands and industrial devices
- MQTT-enabled IIoT connectivity
- HTTPS request support for cloud and web integration
- Email alarm notifications and event monitoring
- LUA scripting and VB-style scripting support
- Free HMI programming software
- Optional Ethernet models available
- Suitable for OEM machinery and industrial control panels
- Local Australian stock and technical support
