Main Features:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script. Can be used for data logging via MQTT or HTTPS service.
- Alarm notifications via Email.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- 4G and WIFI are available as an option.
- CAN Bus is available as an option.
- Programming service is available at a fee.
Engineer Smarter Automation with a Future-Ready HMI
The 7″ Basic HMI Touch Screen from JOFAS is more than just a operator interface—it’s a powerful, IIoT-enabled gateway designed to modernize your industrial automation systems. Whether you are upgrading a legacy control panel or building a new smart factory solution, this rugged HMI delivers the performance, connectivity, and programmability you need at a competitive price point, backed by our local support from Sydney, Australia.
Seamless Connectivity & IIoT Integration for Industry 4.0
In today’s connected industrial landscape, data is king. This HMI is built with Industry 4.0 in mind. Its built-in MQTT service and HTTPS request support (via Lua Script) allow you to easily publish machine data to the cloud or your central SCADA system. This enables real-time data logging, remote monitoring, and predictive maintenance—allowing you to make informed decisions that reduce downtime and improve operational efficiency. Use the onboard email alarm notifications to stay instantly informed of critical events, even when you are off-site.
Unmatched Compatibility & Flexible Programming
Worried about integration hassles? This HMI is designed to communicate with virtually all major PLC brands on the market. It supports MODBUS RTU and TCP as both a master and slave, ensuring seamless connectivity with your existing automation equipment. For complex logic and data handling, the HMI supports advanced programming using both LUA script and VB-styled script, giving experienced engineers the flexibility to create custom applications directly on the touch screen.
Built to Last and Tailored to Your Project
Reliability is non-negotiable in industrial environments. This unit features a robust build quality and is available with optional add-ons to suit your specific needs, including:
-
Optional 4G and WiFi modules for wireless connectivity in remote or hard-to-wire locations.
-
Optional CAN Bus support for integration with specialized industrial networks.
-
Some models support automatic date and time synchronization for accurate data logging and event tracking.
Complete Automation Support from JOFAS
When you purchase from JOFAS, you get more than a hardware component. We are an Australian-based automation solutions provider committed to your project’s success. We offer optional, expert programming services to help you develop your HMI application from scratch or integrate it into your existing control architecture. We also offer a wide range of compatible accessories, including communication cables, screen protectors, and PLC controllers, all available in our store.

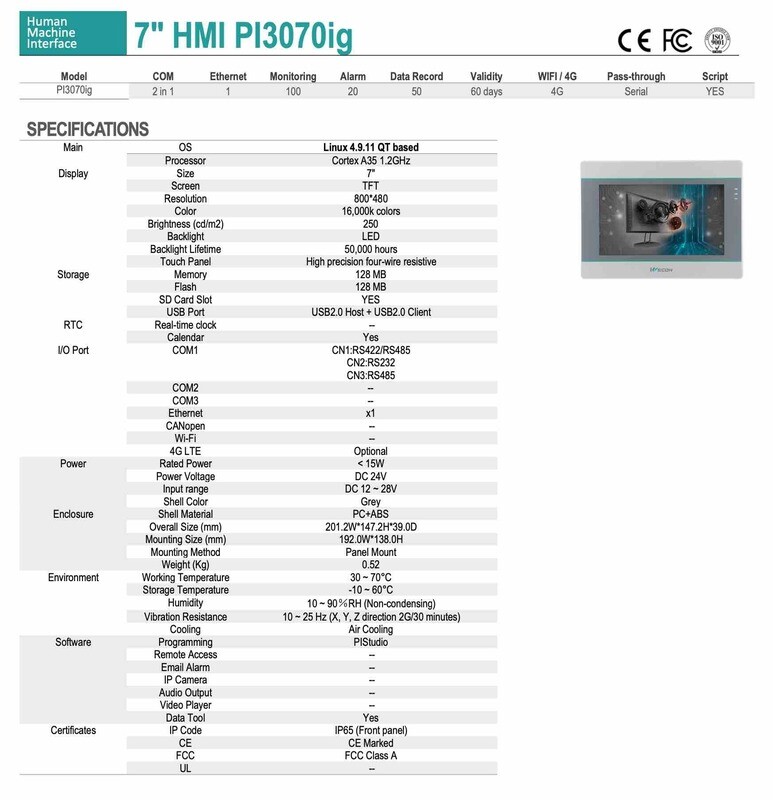

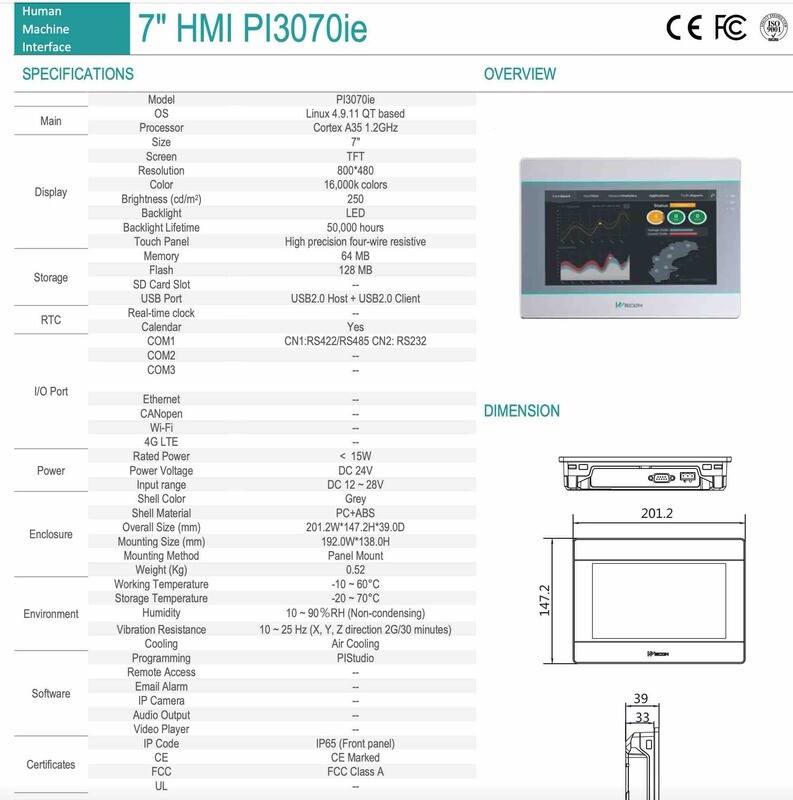

Key Technical Specifications at a Glance
-
Display: 7″ TFT Touch Screen
-
Connectivity: RS422/RS232/RS485, Optional Ethernet, Optional 4G/WiFi, Optional CAN Bus
-
Supported Protocols: MODBUS RTU/TCP (Master/Slave), MQTT, HTTPS
-
Programming: LUA Script & VB-Styled Script
-
Power Supply: 12VDC – 24V DC
-
Weight: 4 kg
-
Brand: WECON
-
Warranty: 1 year
Order with Confidence
All units are in stock and ready for dispatch from our Sydney warehouse. Normally, delivery takes 1-2 weeks. You can order securely through our HTTPS-encrypted online store, or if you prefer, you can also find us on eBay.
Take the Next Step
Ready to enhance your control system? Add this versatile 7″ HMI to your cart today. For bulk inquiries or custom programming needs, don’t hesitate to contact our friendly team.
Please Note: 1. Normally it would take 1-2 weeks to get delivered to your place. 2. Our online store is powered by Ecwid, which provides a secure HTTPS connection to protect your information. You can also shop on our eBay store (prices might be slightly higher due to eBay fee) and facebook store..
