Main Features:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script. Can be used for data logging via MQTT and HTTPS service.
- VPN service is embedded for remotely managing and programming HMIs and PLC devices.
- Remote system maintenance via embedded VPN service
- HMIs with Cloud Storage can store data records and alarms into cloud with no extra charge. Data in cloud can be viewed and exported on PC and mobile phones.
- Alarm notifications via Email.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- 4G and WIFI as an option are available.
- CAN Bus is available as an option.
- Programming service is available at a fee.
| Cloud Storage | 15" PI8150-C | 7“/10” ig-C | 7“/10” ig-C WIFI | 7“/10” ig-C 4G |
|---|---|---|---|---|
| Live Data Points | 300 | 100 | 100 | 100 |
| History Data Points | 100 | 50 | 50 | 50 |
| Alarm Data Points | 200 | 20 | 20 | 20 |
| Data Retention Time | 120 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million |
| VPN Service | Yes | Yes | Yes | Yes |
| Serial Port Pass-Thru | Yes | Yes | Yes | Yes |
Sample Projects, Codes and Tutorials:
- PI Studio Sample Projects and Codes
- Levi Studio Sample Projects and Codes
- PLC Sample Codes for learners
- HMI & PLC Programming Tutorial for Beginners
- Go to WECON’s Youtube Channel for Tutorial Videos
Other resources:
The HMI Your Operators Can Actually Read — And You Can Manage Remotely

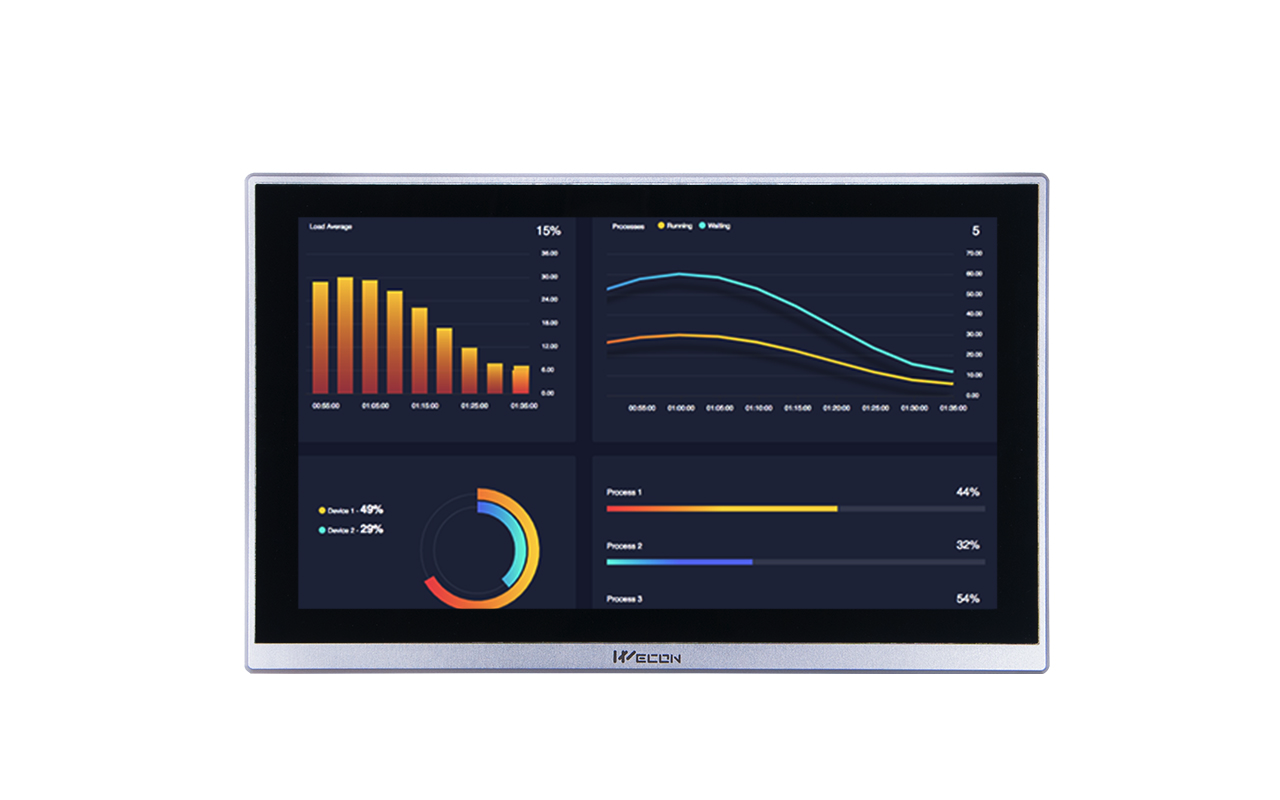

A 15″ screen changes how people interact with a machine. Status values, alarm states, trend graphs, and process data that get crammed onto a 7″ panel all breathe on a 1920×1080 Full HD display. Operators catch problems earlier. Fewer mis-taps. Fewer misreads. It’s the right tool for control panels where visibility matters — and the PI8150ig backs that big display with connectivity features that extend well beyond the factory floor.
Remote access without extra hardware:
An embedded VPN service lets you log into the HMI — and passthrough to any connected PLC — from your laptop or phone, without setting up a separate VPN gateway or paying for third-party remote access software. Remote programming, remote troubleshooting, remote parameter changes: all handled from wherever you are.
Cloud storage included at no extra charge:
The PI8150ig stores up to 300 live data points, 100 history data points, and 200 alarm data points in the cloud, with 120 days of retention (or 1 million records, whichever comes first). Your team can view and export that data from a PC or phone — no on-site visit required to pull a log.
IIoT-ready out of the box:
MQTT and HTTPS services are supported via Lua scripting, making it straightforward to push machine data to your own cloud platform, SCADA, or MES system. This isn’t a bolt-on — it’s built into the ig Series architecture.
Control from your phone:
The WECON Smart app (iOS and Android) mirrors your HMI screens on your smartphone, so supervisors can check machine status and respond to alarms without walking to the panel. The app manual and download links are available on the JOFAS website.
Connects to your existing equipment:
MODBUS RTU and TCP are supported as master or slave. Native driver support covers Allen Bradley, Mitsubishi, Siemens, Schneider, Omron, and more — the full protocol list is available as a download. If you’re integrating this screen into a mixed-brand plant, it will talk to what you already have.
Connectivity options:
The base model connects via Ethernet. Add 4G and WiFi if your installation is away from a wired network or needs mobile redundancy.
Other features worth noting:
- Email alarm notifications
- Automatic time sync
- LUA and VB-style scripting for advanced display logic and recipes
- Data export to USB or SD card as a local backup alongside cloud storage
- Free PI Studio IDE included; sample projects and beginner tutorials available on the JOFAS website
- Programming assistance available at a fee
Stocked in Sydney, shipped Australia-wide.
