Description
- PI Studio IDE – Software Kit for PI Series HM
- WECON PLC Editor IDE – Software Kit for WECON PLC
- PI Studio Sample Projects and Codes
- Go to WECON’s Youtube Channel for Tutorial Videos
- WECON Expansion I/O Modules Datasheet
- WECON LX3V PLC Datasheet
Main Features of HMI screens:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script.
- Embedded VPN service remotely managing and programming HMIs and PLC devices.
- Remote system maintenance via embedded VPN service
- HMIs with Cloud Storage can store data records and alarms into cloud with no extra charge. Data in cloud can be viewed and exported on PC and mobile phones.
- Alarm notifications via Emails.
- Automatic date and time sync.
- MQTT and HTTP service for data logging.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- Data records can be saved on USB drive, or SD-Card if supported, then export to PC or Excel for analysis.
- 4G and WIFI are available an an option.
- CAN Bus is available as an option.
- PI8070 (7″), PI8102H(10.2″) and PI8150ig are equipped with 512M RAM and 4G Flash for data recordings.
- Programming service is available at a fee.

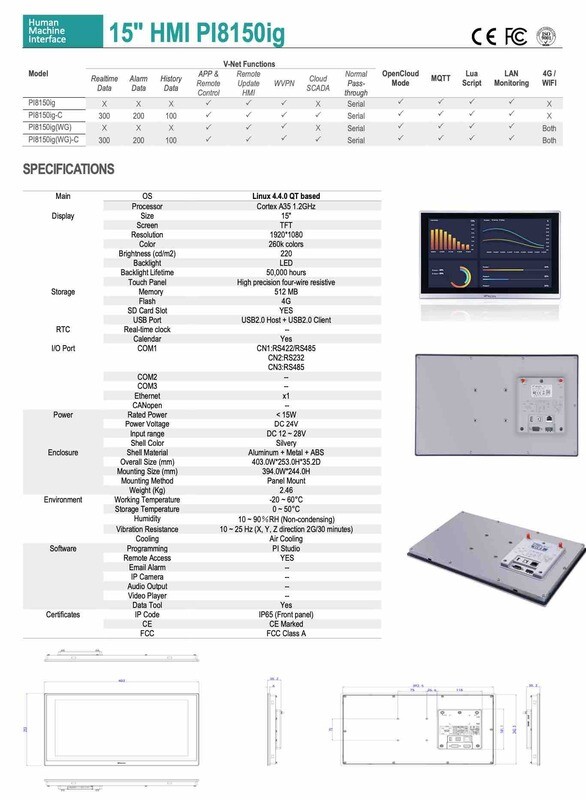

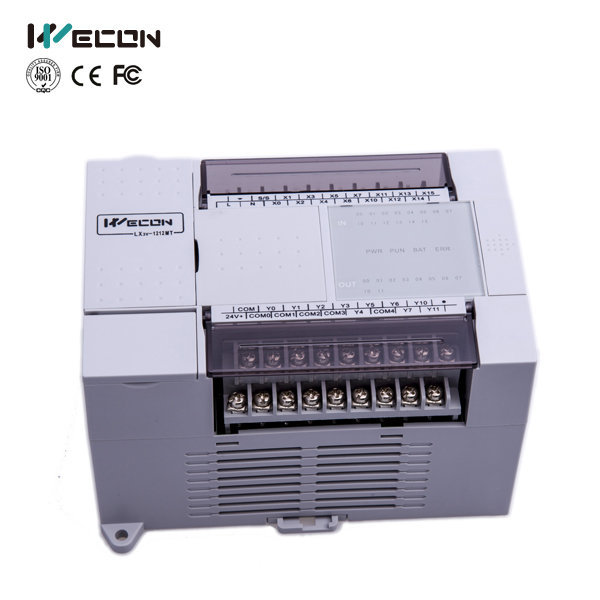

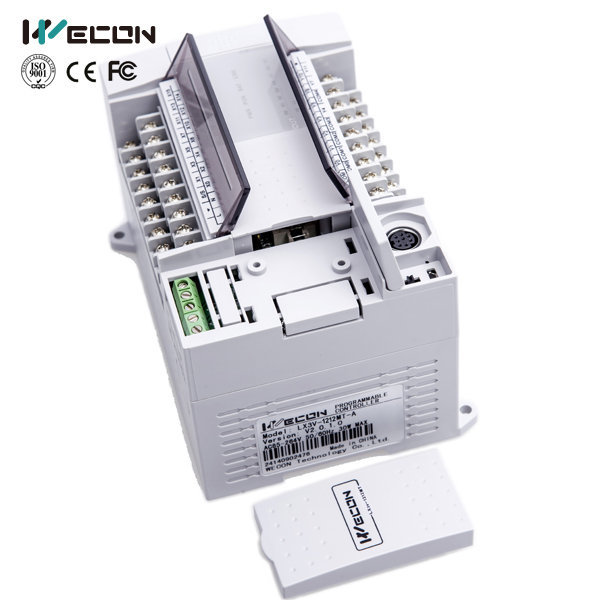

| Cloud Storage | 15" PI8150-C | 7“/10” ig-C | 7“/10” ig-C WIFI | 7“/10” ig-C 4G |
|---|---|---|---|---|
| Live Data Points | 300 | 100 | 100 | 100 |
| History Data Points | 100 | 50 | 50 | 50 |
| Alarm Data Points | 200 | 20 | 20 | 20 |
| Data Retention Time | 120 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million |
| VPN Service | Yes | Yes | Yes | Yes |
| Serial Port Pass-Thru | Yes | Yes | Yes | Yes |
| LX3V | LX3VP | LX5V (Motor and Motion Control) | LX5S | |
|---|---|---|---|---|
| Power Supply | 24VDC or 240VAC | 24VDC or 240VAC | 240VAC | 24VDC |
| Programming Memory | 16k | 64K | 512KB or 384K(With Ethernet Port) | 512KB or 384K(With Ethernet Port) |
| Command Execution Time | 06.0us | 06.0us | 0.01-0.03us | 0.03-0.08us |
| Output Type | Transistor or Relay Or Mixed | Transistor or Relay Or Mixed | Transistor | Transistor or Relay Or Mixed |
| Serial Ports | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485. More RS485 via Expansion. | 1 RS422/RS485, 1 RS485. |
| N:N Network | N/A | YES | YES | YES |
| CAN Bus | N/A | Optional for some models, CAN Open DS301 V4.02, PI8000 HMIs Support CAN Bus | NO | |
| High Speed Counter | 2 | 2 | 8 | |
| High-speed Pulse Outputs | 2*200 khz 2*100 khz Altogether must be less than 400 khz | 4*200 khz | Model 1412 has 4. Others 8 * 200 khz | 2*200 khz |
| S-Curve In Accel & Deccel | N/A | N/A | YES | YES |
| Jerk pulse | N/A | N/A | YES | YES |
| E-Cam | N/A | N/A | YES | YES |
| Manual Pulse Generator | N/A | N/A | YES | YES |
| Circular/Linear Interpolation | N/A | N/A | YES | YES |
| MODBUS Tabular Setting (RSLIST) | N/A | YES | YES | YES |
| Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet |
Available upgrade options:

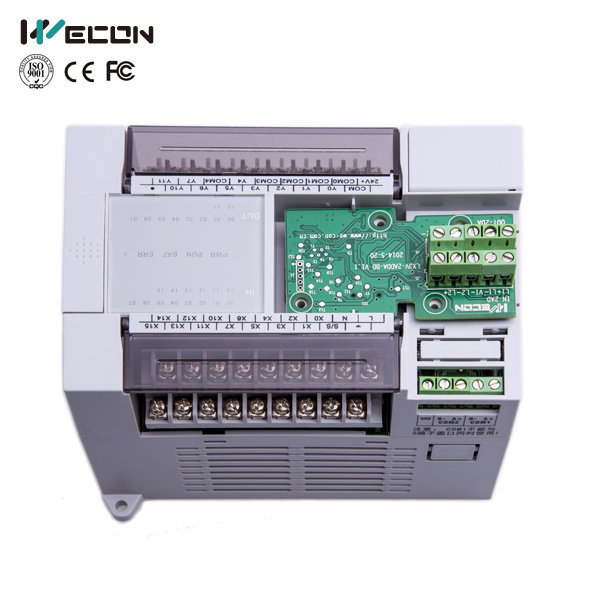

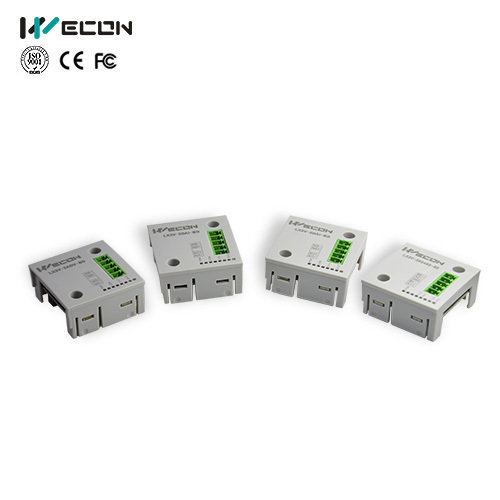

1. Expansion modules for extra digital inputs/outputs.

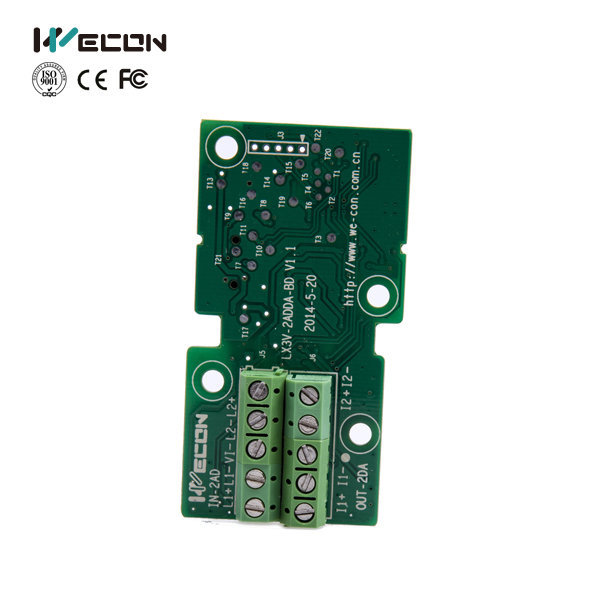

2. Expansion modules for analogue inputs/outputs (4-20mA or 0-10V).
3. Ethernet support for PLC through expansion card.

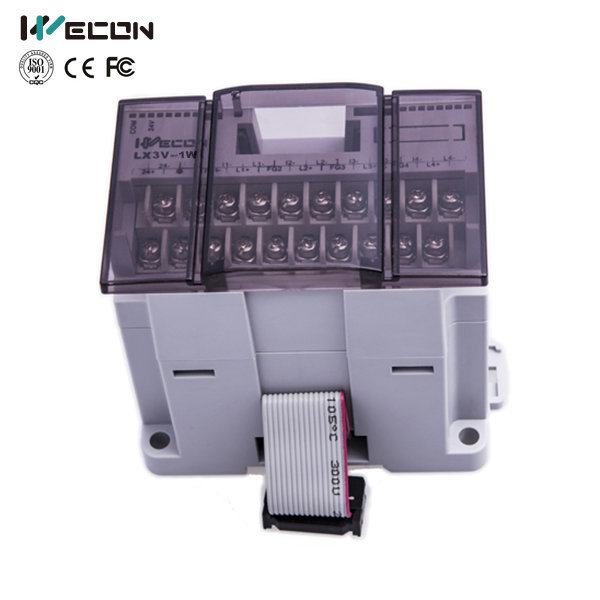

4. Expansion modules to support load cell for weighing.
5. Expansion modules for temperature measuring and control with PID.
6. More features for motor control and motion control.
7. HMI screen sizes: 7″, 10.2″, 12″, 15″.

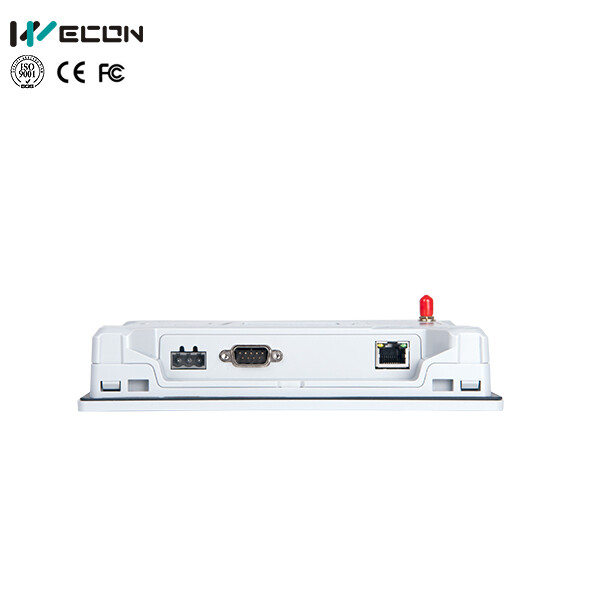

8. Both 7″ and 10″ have the option of including on-board 4G or WIFI for remote control via PC or smart phones.

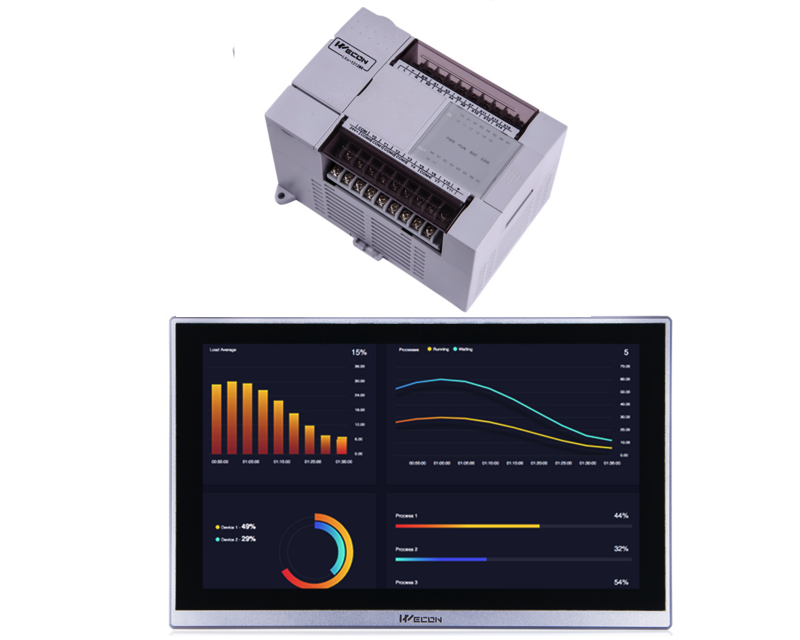

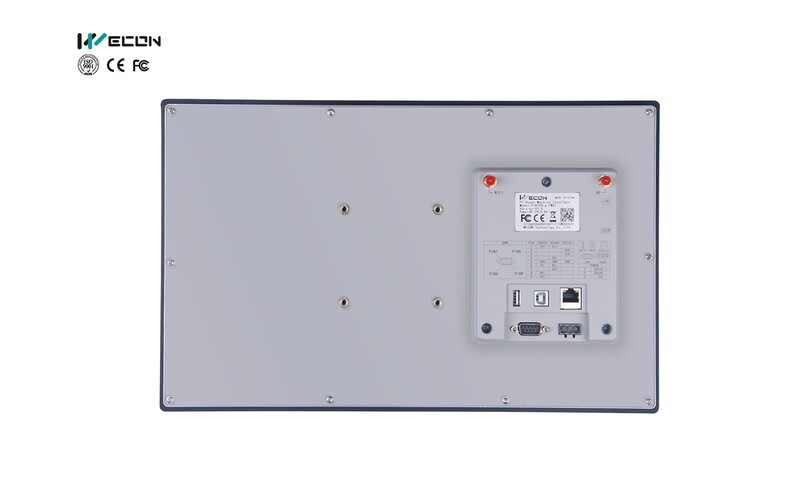

15″ Cloud HMI/PLC Combo: The All-in-One Control Solution with Built-in Remote Access & Cloud Storage
Engineer the Future of Remote Automation
The 15″ Cloud HMI/PLC Combo from JOFAS is a revolutionary all-in-one control solution that integrates a powerful 15-inch HMI touch screen with a fully-featured PLC controller, enhanced by robust cloud connectivity and remote access capabilities. This powerful combination eliminates the complexity of designing separate HMI and PLC systems, offering a streamlined, cost-effective, and future-proof solution for your industrial automation projects. Designed and supported from our Sydney, Australia facility, it’s the ideal choice for OEMs, system integrators, and plant managers looking to implement smart factory (IIoT) initiatives with ease.
Complete Control with Embedded VPN & Remote Maintenance
One of the standout features of this Combo is its embedded VPN service. This allows for secure, remote management and programming of both the HMI and the PLC from anywhere in the world. You can perform remote system maintenance, troubleshoot issues, and update control logic without the need for costly and time-consuming on-site visits. This feature is invaluable for supporting distributed equipment, reducing downtime, and providing superior after-sales service.
Complimentary Cloud Storage: Data Logging Made Simple
Say goodbye to expensive third-party cloud subscriptions. This HMI/PLC combo comes with built-in cloud storage at no extra charge. You can automatically store real-time production data, critical process alarms, and historical records directly to the cloud. This data can be easily viewed, analyzed, and exported to Excel directly from your PC or mobile phone, providing powerful insights into your machine’s performance and enabling predictive maintenance strategies.
Seamless IIoT Integration & Advanced Connectivity
Designed for Industry 4.0, this unit is IIoT-ready with built-in MQTT and HTTPS request services (via Lua Script). This allows for easy data logging and integration with your existing SCADA or cloud-based analytics platforms. For flexible communication, it supports all major PLC protocols and can operate as a MODBUS RTU/TCP master or slave. You also have the option to add 4G, WiFi, or CAN Bus modules for wireless connectivity and integration into specialized networks.
Powerful, Flexible, and Expandable Control
At the heart of the combo is a reliable PLC system that offers the flexibility to handle a wide variety of applications. You can customize the I/O configuration to match your exact needs with available expansion modules, including:
-
Extra Digital Inputs/Outputs
-
Analogue Inputs/Outputs (4-20mA or 0-10V)
-
Load Cell Support for Weighing Applications
-
Temperature Measuring and Control with PID
-
Motor Control and Motion Control Features
The HMI supports both advanced Lua scripting and VB-styled scripts, giving experienced engineers the freedom to create complex, custom applications directly on the screen.
Built for the Industrial Environment
With a generous 15-inch display and a robust build, this combo unit provides a clear, user-friendly interface for operators while withstanding the demands of industrial environments. It includes automatic date and time synchronization and offers extensive on-device data recording capabilities to a USB drive or SD card for local backup.
Get the Complete Package from JOFAS
Your purchase from JOFAS includes the HMI, PLC power supply, and communication cable, making setup quick and straightforward. We are an Australian-based automation solutions provider committed to your success. We also offer expert programming services and support to help you develop your application from the ground up.
Take Control of Your Automation Remotely
Add this powerful 15″ Cloud HMI/PLC Combo to your cart today. For a custom configuration or a quote on larger quantities, please contact our team. All units are in stock and ready for dispatch from our Sydney warehouse.
