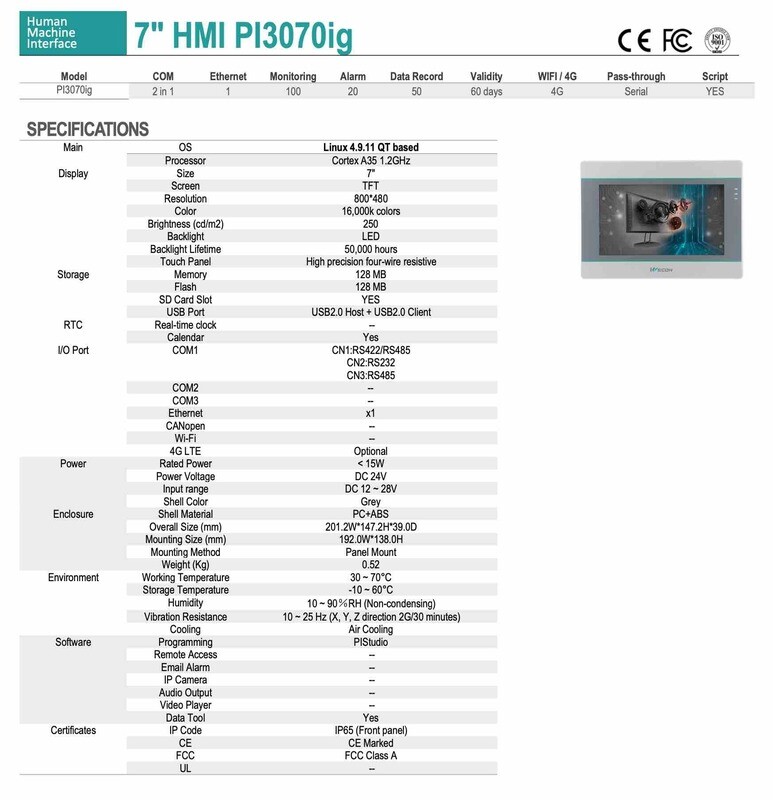

Main Features of HMI screens:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script.
- Embedded VPN service for remotely managing and programming HMIs and PLC devices.
- Remote system maintenance via embedded VPN service, HMI acting as IOT gateway.
- HMIs with Cloud Storage can store data records and alarms into cloud with no extra charge. Data in cloud can be viewed and exported on PC and mobile phones.
- Alarm notifications via Emails.
- Automatic date and time sync.
- MQTT and HTTP service for data logging.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- Data records can be saved on USB drive, or SD-Card if supported, then export to PC or Excel for analysis.
- 4G and WIFI are available an an option.
- CAN Bus is available as an option.
- PI8102H(10.2″) is equipped with 512M RAM and 4G Flash for data recordings.
- Programming service is available at a fee.
| Cloud Storage | 15" PI8150-C | 7“/10” ig-C | 7“/10” ig-C WIFI | 7“/10” ig-C 4G |
|---|---|---|---|---|
| Live Data Points | 300 | 100 | 100 | 100 |
| History Data Points | 100 | 50 | 50 | 50 |
| Alarm Data Points | 200 | 20 | 20 | 20 |
| Data Retention Time | 120 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million |
| VPN Service | Yes | Yes | Yes | Yes |
| Serial Port Pass-Thru | Yes | Yes | Yes | Yes |
| LX3V | LX3VP | LX5V (Motor and Motion Control) | LX5S | |
|---|---|---|---|---|
| Power Supply | 24VDC or 240VAC | 24VDC or 240VAC | 240VAC | 24VDC |
| Programming Memory | 16k | 64K | 512KB or 384K(With Ethernet Port) | 512KB or 384K(With Ethernet Port) |
| Command Execution Time | 06.0us | 06.0us | 0.01-0.03us | 0.03-0.08us |
| Output Type | Transistor or Relay Or Mixed | Transistor or Relay Or Mixed | Transistor | Transistor or Relay Or Mixed |
| Serial Ports | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485. More RS485 via Expansion. | 1 RS422/RS485, 1 RS485. |
| N:N Network | N/A | YES | YES | YES |
| CAN Bus | N/A | Optional for some models, CAN Open DS301 V4.02, PI8000 HMIs Support CAN Bus | NO | |
| High Speed Counter | 2 | 2 | 8 | |
| High-speed Pulse Outputs | 2*200 khz 2*100 khz Altogether must be less than 400 khz | 4*200 khz | Model 1412 has 4. Others 8 * 200 khz | 2*200 khz |
| S-Curve In Accel & Deccel | N/A | N/A | YES | YES |
| Jerk pulse | N/A | N/A | YES | YES |
| E-Cam | N/A | N/A | YES | YES |
| Manual Pulse Generator | N/A | N/A | YES | YES |
| Circular/Linear Interpolation | N/A | N/A | YES | YES |
| MODBUS Tabular Setting (RSLIST) | N/A | YES | YES | YES |
| Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet |
Available upgrade options:
1. Expansion modules for extra digital inputs/outputs.
2. Expansion modules for analogue inputs/outputs (4-20mA or 0-10V).
3. Ethernet support for PLC through expansion card.
4. Expansion modules to support load cell for weighing.
5. Expansion modules for temperature measuring and control with PID.
6. More features for motor control and motion control.
8. Both 7″ and 10″ have the option of including on-board 4G or WIFI for remote control via PC or smart phones.

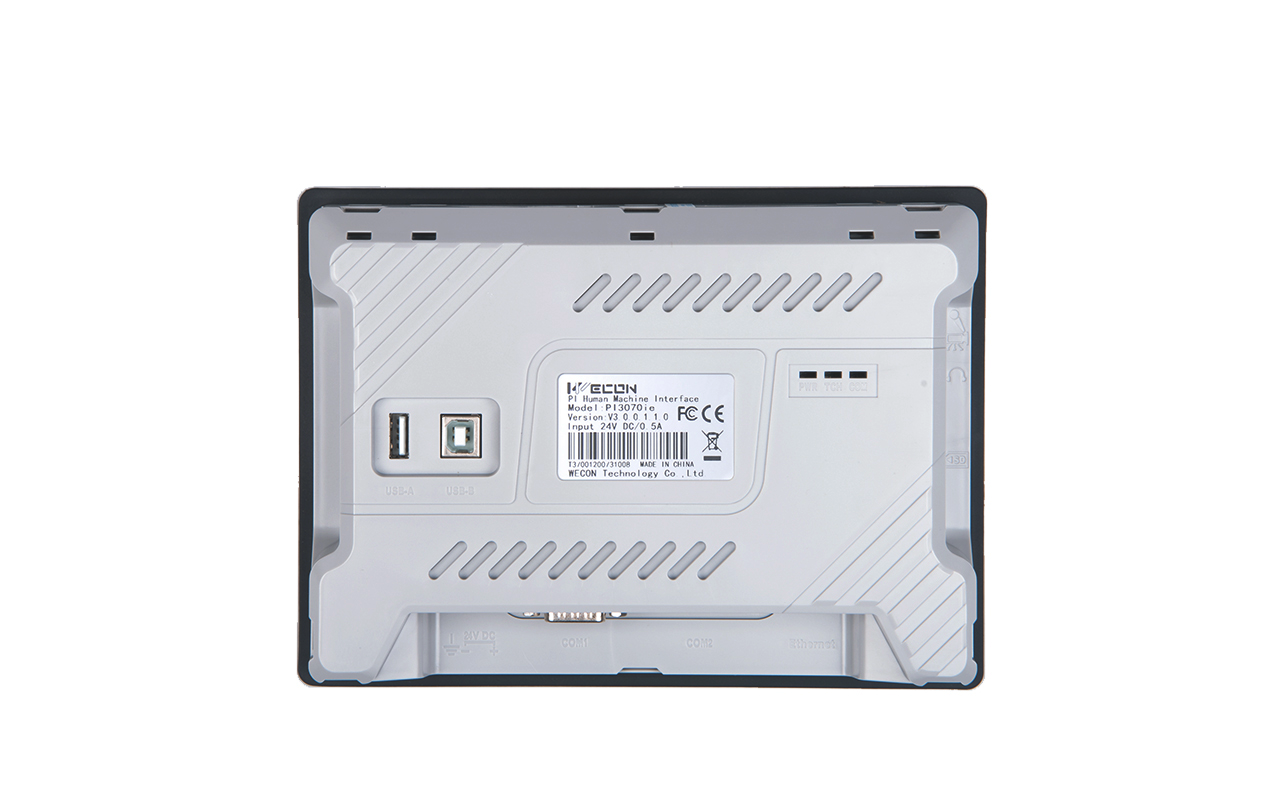

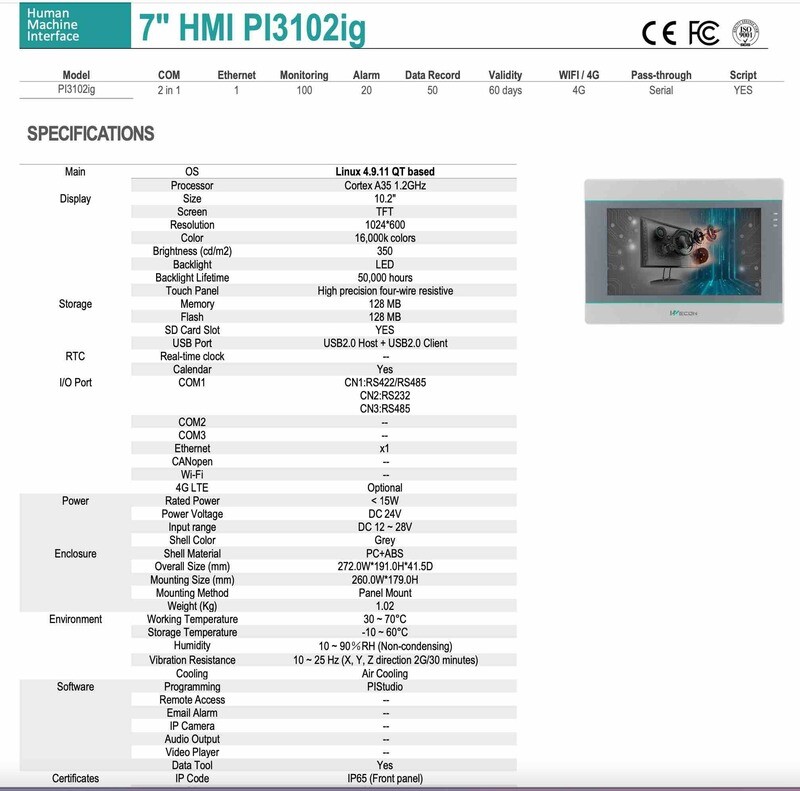

10″ Cloud HMI/PLC Combo: The Complete, Remote-Ready Control Solution
Integrate, Connect, and Control from Anywhere

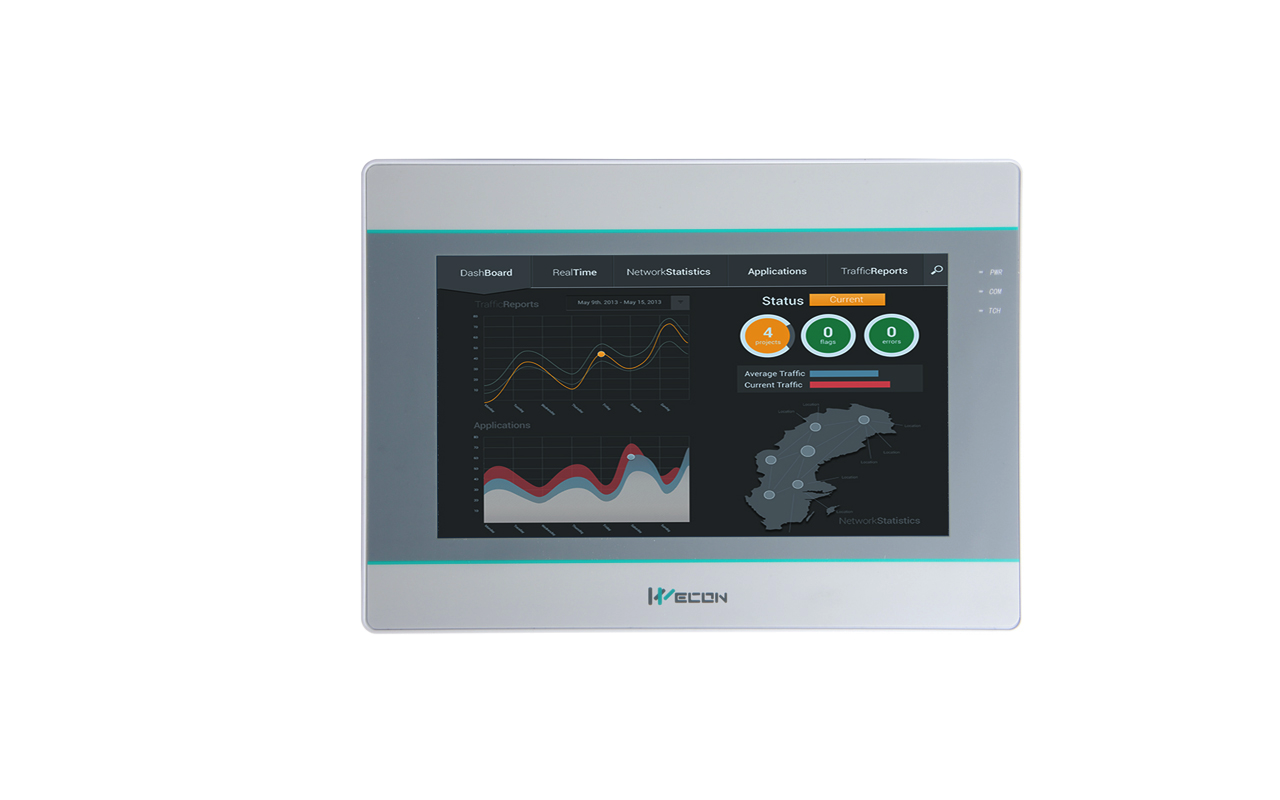

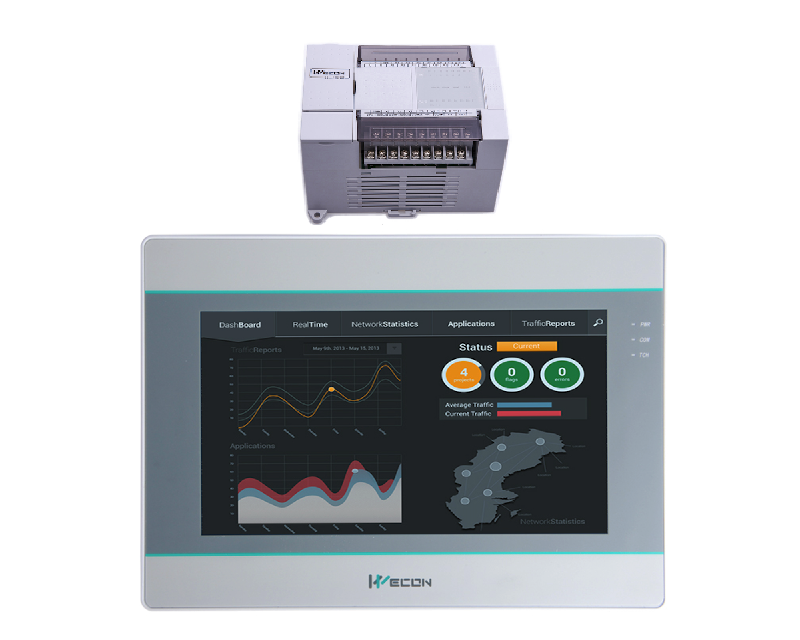

The 10″ Cloud HMI/PLC Combo from JOFAS is a powerful, all-in-one industrial controller that merges a vibrant 10-inch HMI touch screen with a flexible PLC system, supercharged by secure cloud connectivity and remote access. This comprehensive package eliminates the complexity of sourcing and integrating separate components, offering a streamlined, cost-effective, and future-ready solution for your automation projects. Backed by local support from our Sydney, Australia facility, it is the perfect choice for system integrators, OEMs, and plant managers ready to embrace smart manufacturing (IIoT).
Secure Remote Access & Maintenance with Embedded VPN
One of the most powerful features of this combo is its embedded VPN service. This allows for secure, remote programming, management, and maintenance of both the HMI and the PLC from any location with an internet connection. The HMI acts as an IoT gateway, enabling you to troubleshoot issues, update logic, and monitor machine performance without costly and time-consuming on-site visits. This capability is essential for supporting distributed equipment, minimizing downtime, and providing a superior level of after-sales service.
Complimentary Cloud Storage & IIoT Data Logging
Unlock the value of your production data with built-in cloud storage at no extra charge. This HMI/PLC combo can automatically log real-time data, process alarms, and historical records directly to the cloud. You can easily view, analyze, and export this data to Excel from your PC or mobile phone, providing immediate insights into machine efficiency, enabling predictive maintenance, and supporting data-driven decision-making. The HMI also supports MQTT and HTTPS services (via Lua Script) for seamless integration with existing SCADA or enterprise analytics platforms.
Powerful, Expandable, and Flexible Control
At its core, this unit combines a reliable PLC system with a user-friendly HMI. It supports all major PLC protocols and can operate as a MODBUS RTU/TCP master or slave, ensuring compatibility with your existing equipment. To meet the demands of diverse applications, you can easily customize the I/O configuration using available expansion modules, including:
-
Extra Digital Inputs/Outputs
-
Analogue Inputs/Outputs (4-20mA or 0-10V)
-
Ethernet Support for the PLC
-
Load Cell Support for Weighing Applications
-
Temperature Measuring and Control with PID
-
Advanced Motor Control and Motion Control Features
The HMI supports both advanced Lua scripting and VB-styled scripts, offering experienced engineers the flexibility to create complex, custom applications directly on the touch screen.
Built for the Industrial Environment
With its generous 10.2-inch display, this combo provides a clear, intuitive interface for operators while being built to withstand the demands of industrial settings. Features include automatic date and time synchronization and robust on-device data recording to a USB drive or SD card for local backup. The unit comes equipped with 512M RAM and 4G Flash for extensive data recordings.
The Complete Package from JOFAS
Your purchase from JOFAS includes the HMI, PLC power supply, and communication cable, ensuring a quick and straightforward setup. We are an Australian-based automation solutions provider committed to your project’s success and offer expert programming services and dedicated local support.
Upgrade Your Automation Capabilities Today
Add this powerful 10″ Cloud HMI/PLC Combo to your cart now. For custom configurations or bulk inquiries, please contact our team. All units are in stock and ready for dispatch from our Sydney warehouse.
