PI8150ig: 15″ Big Screen High Resolution HMI Touch Screen with remote control and cloud storage, and optional WIFI, 4G. Fast CPU and Fast boot-up.
| Cloud Storage | 15" PI8150-C | 7“/10” ig-C | 7“/10” ig-C WIFI | 7“/10” ig-C 4G |
|---|---|---|---|---|
| Live Data Points | 300 | 100 | 100 | 100 |
| History Data Points | 100 | 50 | 50 | 50 |
| Alarm Data Points | 200 | 20 | 20 | 20 |
| Data Retention Time | 120 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million | 60 days or altogether 1 million |
| VPN Service | Yes | Yes | Yes | Yes |
| Serial Port Pass-Thru | Yes | Yes | Yes | Yes |
If you would like to test our Remote Control feature, please contact us for free demo account and instructions.
Main Features:
- All HMI screens from ig Series are IIoT ready with “MQTT service” and “HTTPS request” service supported via Lua Script.
- VPN service is embedded for remotely managing and programming HMIs and PLC devices.
- HMIs with Cloud Storage can store data records and alarms into cloud with no extra charge. Data in cloud can be viewed and exported on PC and mobile phones.
- Alarm notifications via Email.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- 4G and WIFI as options are available.
- CAN Bus is available as an option.
- Programming service is available at a fee.
To buy this HMI screen only:
To buy this HMI screen with PLC in a combo deal:
- PI Studio Sample Projects
- Free programming software, VB styled script programmng and Lua script programming supported.

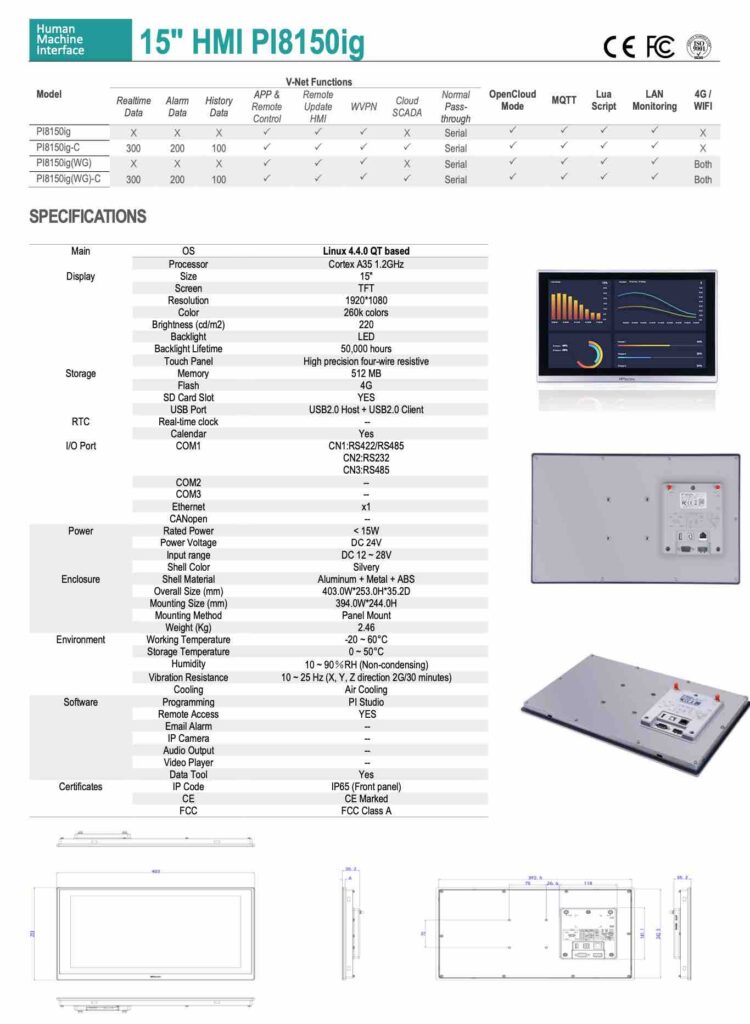

- PI8150ig data sheet, 7s boot up, Optional WIFI, 4G and Remote control
- PI8105ig brochure.
- Online manual and sample projects.
