Description

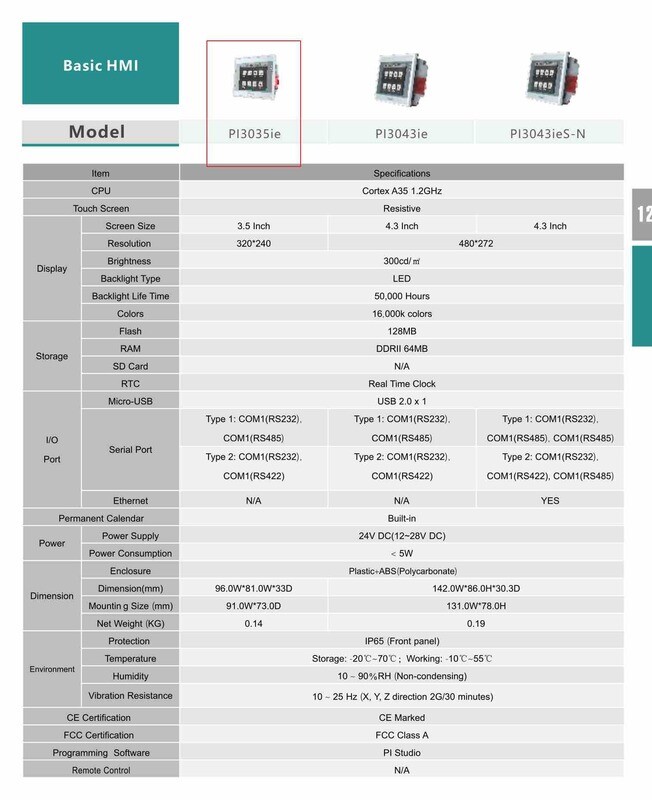

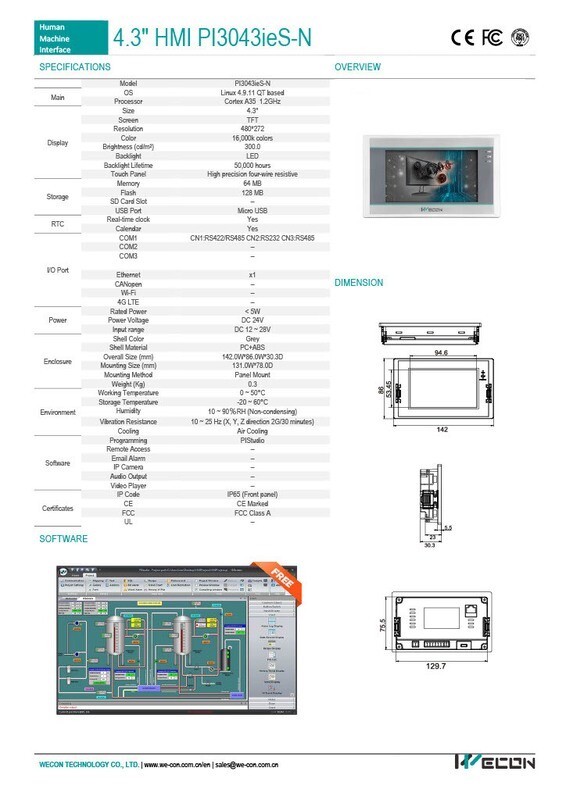

- PI Studio IDE – Software Kit for PI Series HMI (for PI3043ie-N)
- Levi Studio IDE – Software Kit for Levi Series HMI (for Levi2043T)
- WECON PLC Editor IDE – Software Kit for WECON PLC
- WECON Expansion I/O Modules Datasheet
- WECON LX3V PLC Datasheet
Main Features of HMI screens:
- Alarm notifications via Emails.
- Automatic date and time sync.
- LUA script and VB styled script are supported for advanced programming.
- All major PLC brands are supported, including MODBUS RTU and TCP as master or slave.
- Data records can be saved on USB drive, or SD-Card if supported, then export to PC or Excel for analysis.
- Programming service is available at a fee.
| LX3V | LX3VP | LX5V (Motor and Motion Control) | LX5S | |
|---|---|---|---|---|
| Power Supply | 24VDC or 240VAC | 24VDC or 240VAC | 240VAC | 24VDC |
| Programming Memory | 16k | 64K | 512KB or 384K(With Ethernet Port) | 512KB or 384K(With Ethernet Port) |
| Command Execution Time | 06.0us | 06.0us | 0.01-0.03us | 0.03-0.08us |
| Output Type | Transistor or Relay Or Mixed | Transistor or Relay Or Mixed | Transistor | Transistor or Relay Or Mixed |
| Serial Ports | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485 Only, More RS485 via Expansion Card | 1 RS422/RS485, 1 RS485. More RS485 via Expansion. | 1 RS422/RS485, 1 RS485. |
| N:N Network | N/A | YES | YES | YES |
| CAN Bus | N/A | Optional for some models, CAN Open DS301 V4.02, PI8000 HMIs Support CAN Bus | NO | |
| High Speed Counter | 2 | 2 | 8 | |
| High-speed Pulse Outputs | 2*200 khz 2*100 khz Altogether must be less than 400 khz | 4*200 khz | Model 1412 has 4. Others 8 * 200 khz | 2*200 khz |
| S-Curve In Accel & Deccel | N/A | N/A | YES | YES |
| Jerk pulse | N/A | N/A | YES | YES |
| E-Cam | N/A | N/A | YES | YES |
| Manual Pulse Generator | N/A | N/A | YES | YES |
| Circular/Linear Interpolation | N/A | N/A | YES | YES |
| MODBUS Tabular Setting (RSLIST) | N/A | YES | YES | YES |
| Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet | Download Data Sheet |
Complete Control in a Compact Package

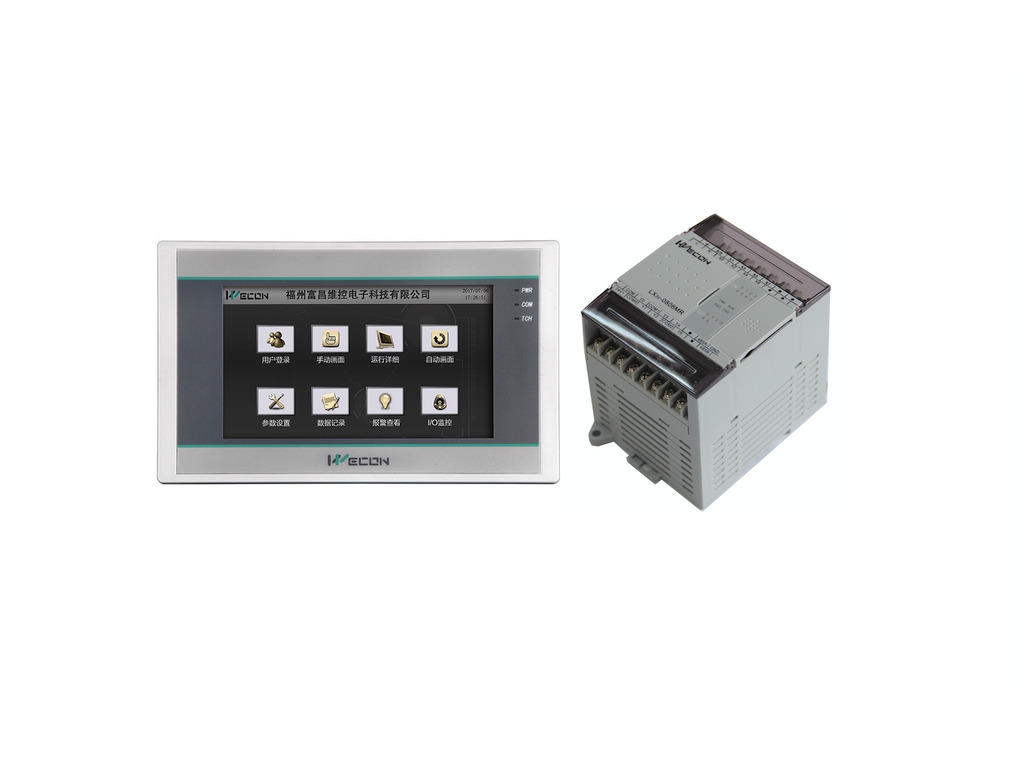

When panel space is tight but your control requirements aren’t, this WECON PLC/HMI combo delivers everything you need without the bulk. A colour touchscreen HMI and WECON LX3V PLC ship together, pre-matched and ready to wire — saving you sourcing time and compatibility headaches.

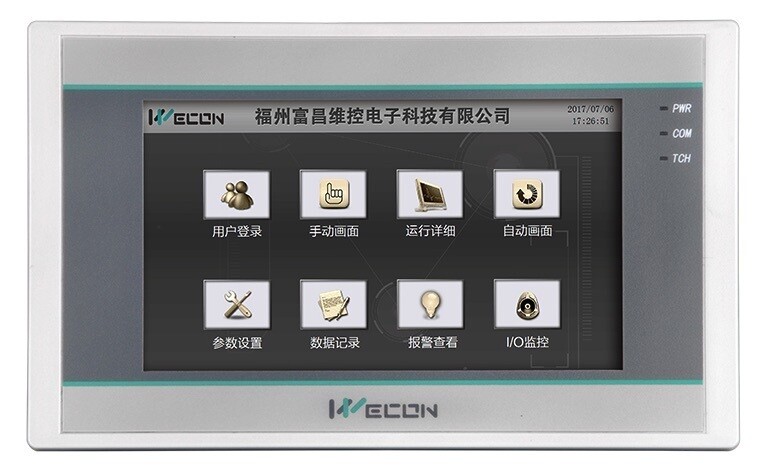

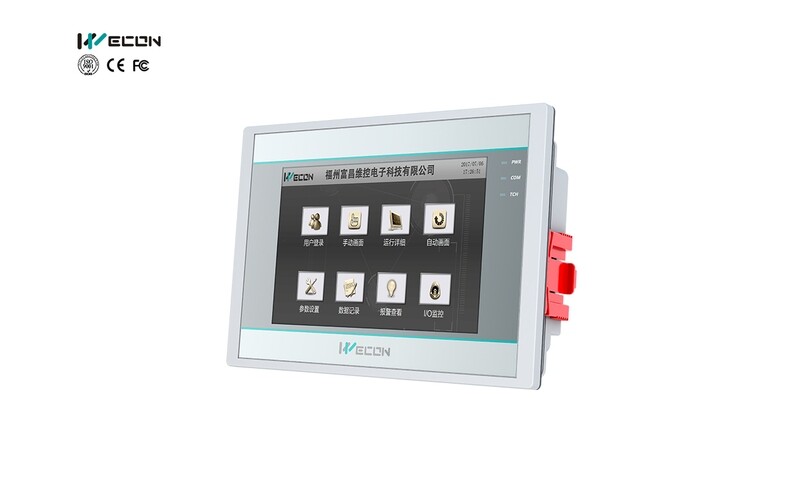

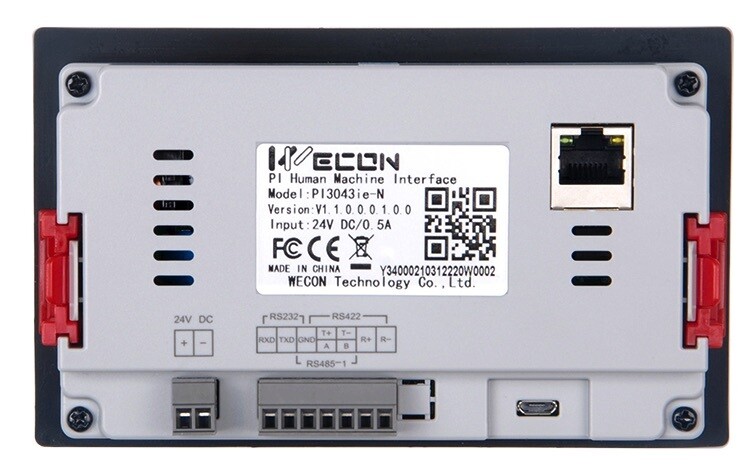

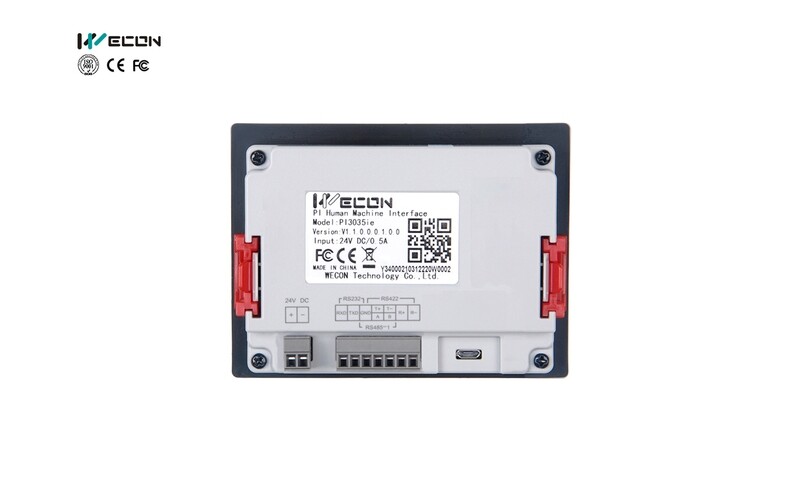

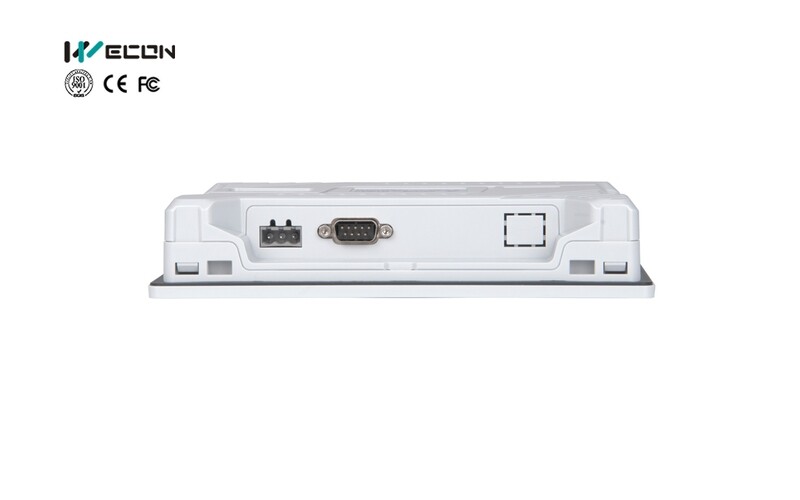

Two HMI options to suit your application:
The 3.5″ model is the lean choice for simple setups — MODBUS RTU over RS485/RS422/RS232, no Ethernet port. Step up to the 4.3″ if you need Ethernet connectivity and MODBUS TCP alongside RTU, making it easy to integrate with plant networks or SCADA systems.
Scale your I/O as your machine demands:

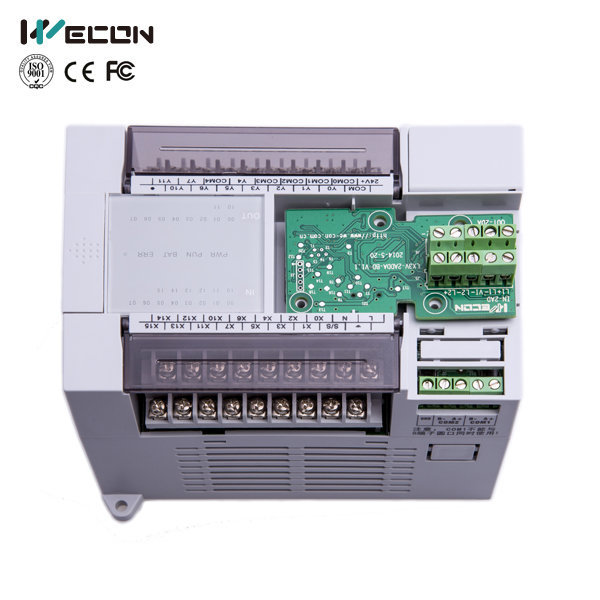

Start with the base LX3V at 8 DI / 6 DO for straightforward on/off control, or go larger with 14 DI/12 DO or 16 DI/16 DO variants when your sequence logic grows. Expansion cards slot directly onto the PLC for analog inputs (4–20 mA or 0–10 V), analog outputs, RTD (PT100), and thermocouple measurement — all without adding another device to your panel. Standalone expansion modules extend the system further with up to 16 extra digital I/O, 24-bit weighing inputs, or PID-ready thermocouple temperature control.
HMI features that actually get used on the factory floor:
- Email alarm notifications — faults reach the right person without anyone watching a screen
- Auto time sync keeps timestamps on your data logs accurate
- Data logging to USB or SD card, exportable directly to Excel
- LUA and VB-style scripting for advanced recipe management or custom logic
- Communicates with Siemens, Schneider, Omron, Mitsubishi, and any MODBUS device as master or slave
Free software, no surprises:
WECON’s Levi Studio IDE (for the Levi series HMI) and PLC Editor are included at no cost. Sample projects, programming tutorials, and datasheet downloads are available on the JOFAS website — so you’re not starting from a blank slate.
Power supply flexibility:
Select 24 VDC for cabinet installations with an existing DC rail, or 85–265 VAC if you’re running directly off mains — one less transformer to worry about.
Stocked in Sydney. Programming assistance available at a fee if you need a head start.
