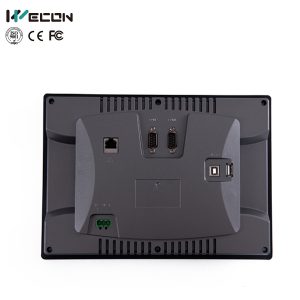

PI3102H: 10.2″ HMI, High Resolution

Key Specs:

  • 10.2″ TFT Touch Screen
  • CORTEX A8 600MHZ CPU
  • 800*480 in resolution
  • DDRII 128M, 128M Flash
  • 2 Com Ports for RS232/RS485/RS422
  • ETHERNET port

Buy Now:

Relevant Downloads:

Sample Projects, Codes and Tutorials:

It’s never been easier to take matter into your own hands and develop your own program now with WECON’s help. Trust WECON and make sure you won’t get dragged into the bottomless pit of putting in more and more money each year to simply accommodate to new changes that you can’t avoid.

Wecon has two series of HMI screens. Levi Series is the classic series that features essential only functions, no-frills design. PI Series, adopting latest technical development, was designed for now and also for the future. With a better display and faster CPU on the outside compared to Levi, the new PI Series has more focus on overall performance than just lower prices. Its software platform, PI Studio, is designed from scratch with flexibility and reliability as top priorities.

PI Series’ is categorized into three sub series, with PI3000 at the low-end for cost-sensitive customers, PI9000 being the high end for customers valuing overall experience, and PI8000 targeting the middle ground.

PI Studio is the easy-to-use proprietary IDE for screens of PI Series, with which it’s basically just a drag and drop job to build your own interactive applications. PI Studio has in-built support for Modbus, CAN, and most of the communication protocols for talking to major PLC players’ products. You can also use your own protocol if you so wish.

As WECON goes all out to make it possible for customers with or without programming experiences to use the IDE without much of a learning curve, we strongly encourage all our customers try to develop their own applications so that any modifications can be easily done at any time required. We have Software Engineers ready to assist in solving any problems you might come across. But if you really don’t want to spend time in it, both WECON and us can do the job for you at a low rate.

DISPLAY

Size

10.2″

Resolution

800*480

Brightness

300 nits

Contrast Ratio

500:1

Backlighting

LED

Backinglight Life Expectancy

50,000 hrs

Colors

262144 (18 bit)

MEMORY

Flash

128MB

RAM

DDRIII 128M

RTC

256KB

SD Card Slot

Yes

I/O

USB

USB Host USB 2.0 x 1, USB Client USB 2.0 x 1

Printer Port

Serial

Serial COM1

RS232/RS422/RS485

Serial COM2

RS232/RS422/RS485

Serial COM3

N/A

Ethernet

Yes

CAN

N/A

POWER SUPPLY

Power Fail Tolerance

< 5ms

Input

24V DC(12~28V DC)

Wattage

<10W

Power Isolation

N/A

Breakdown Voltage

500V AC within less than 1min

Insulation Resistance

over 20MΩ 500VDC

Vibration Testing

10 ~ 25 Hz (2G/30mins)

ENVIRONMENT

Cooling Method

Natural

Protection Class

IP65

Storage Temperature

-20 ~ 70℃

Operating Temperature

-10℃ ~ 60℃

Operating Humidity

10 ~ 90%RH

BODY SPECS

Body Material

Engineering plastic ABS

Outside Dimensions(mm)

272.0*190.5*41.4mm

Cavity Dimensions(mm)

260.0W*179.0H

CERTIFICATES

CE

EN61000-6-2: 2005, EN61000-6- 4:2007

FCC

FCC Class A

, , , , , , , , , ,
